Seismic Tomography for Swindon: Refraction & Reflection Surveys

Practical geotechnics, field-tested.

LEARN MORE

The Upper Chalk that underlies much of Swindon has a reputation. It weathers unpredictably, with solution pipes and soft putty zones that can hollow out beneath a perfectly flat site. Our seismic tomography programme starts from that reality, mapping the transition from grade VI weathered chalk down to intact rock before a single foundation is designed. In Old Town the chalk sits shallow under thin head deposits, but out toward the M4 corridor the sequence thickens with Clay-with-Flints capping the high ground. Running both refraction and reflection lines gives us two independent velocity models we can cross-check, which matters when you are trying to spot a metre-wide dissolution feature at 8 metres depth. We calibrate the tomographic inversion against borehole data wherever possible, so the final P-wave sections tie back to CPT test refusal depths or rotary core recovery logs.

A 1,500 m/s contour on the tomography section often marks the boundary between rippable weathered chalk and rock that needs a breaker in Swindon.

Our service areas

Process and scope

Last winter we mobilised to a site off Great Western Way where the developer needed to know whether a proposed attenuation tank could be ripped or required hammering. The desk study flagged the Seaford Chalk Formation as Class C karst, so the council would not accept a conventional borehole grid alone. We laid out four 115-metre spreads with 4.5-metre geophone spacing, firing a 12-gauge buffalo gun at every fifth station. The refraction tomography resolved a low-velocity trough running diagonally under the tank footprint; the reflection stack imaged a bright reflector at the base of the weathered zone that matched a water-filled cavity confirmed later by probe drilling. Processing ran through a damped least-squares inversion with 1-metre cell size, and the final RMS misfit stayed below 1.2 milliseconds. For deeper infrastructure, combining seismic P-wave velocity with S-wave profiles from MASW gives a full dynamic stiffness profile the structural engineer can use directly in a soil-structure interaction model.
Seismic Tomography for Swindon: Refraction & Reflection Surveys
Technical reference — Swindon

Local considerations

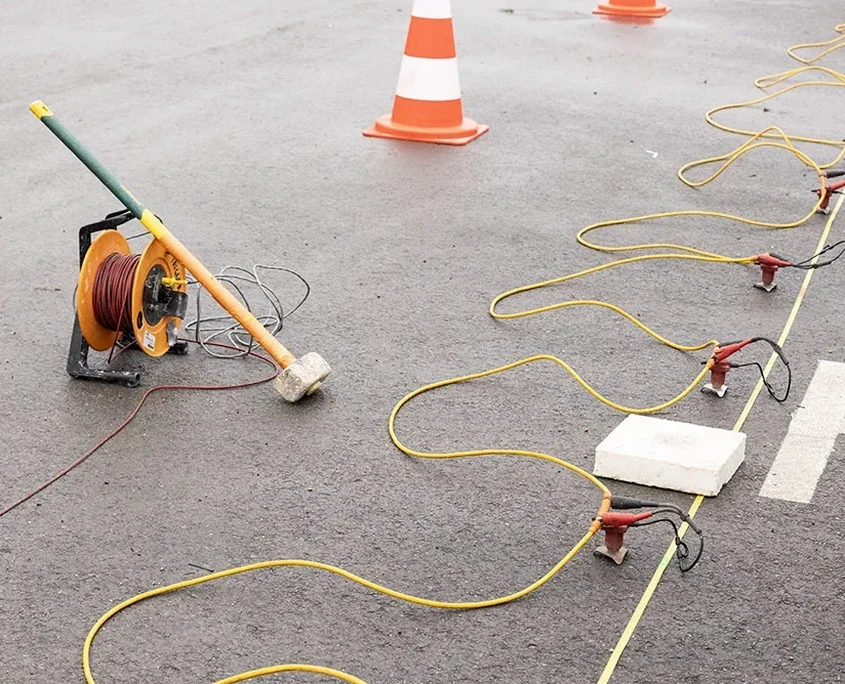

The 24-channel Geometrics Geode seismograph we run in Swindon weighs about 8 kg, but the real work is in the cables. A full 230-metre spread with takeouts every 3 metres means 80 geophones to plant, spike, and level on whatever surface the site gives us. On a wet January morning on the Kimmeridge Clay outcrops near the railway works, coupling becomes the problem: clay smears the spike, attenuates the shear, and we lose the high-frequency signal that separates a thin clay parting from a true velocity inversion. We carry spare spikes, gypsum paste, and sandbags to weight the geophones when the wind hits 25 knots across the open fields south of the M4. The other risk is cultural noise. Swindon is a working railway town, and a passing HST on the Great Western Main Line puts a 30–80 Hz rumble straight into the record; we either stack more shots during the quiet interval or notch-filter the 50 Hz traction current hum in post-processing.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnical-engineering1.com

Reference standards

BS 5930:2015+A1:2020 – Code of practice for ground investigations, Eurocode 7: BS EN 1997-1:2004 – Geotechnical design (general rules), BS EN ISO 22476-1:2012 – Field testing (electrical cone and piezocone), Construction (Design and Management) Regulations 2015 – site safety

Reference parameters

ParameterTypical value
MethodSeismic refraction and reflection tomography (P-wave)
Spread length69–230 m, 24 or 48 channel (site-dependent)
Geophone spacing2–5 m for refraction; 1–2 m for high-res reflection
SourceAccelerated weight drop or 12-gauge buffalo gun
Inversion algorithmDamped least-squares with 1 m cell size
Typical investigation depth20–30 m (refraction); 50+ m (reflection)
Data formatSEG-2 field records, ASCII velocity grids, DXF contours

Questions and answers

How much does a seismic tomography survey cost for a typical site in Swindon?

For a single 115-metre refraction spread with a 24-channel array, the cost typically sits between £2,240 and £3,100, depending on access and the number of shot points. A combined refraction-and-reflection programme with longer spreads and higher shot density runs from £3,200 to £4,550. These figures cover field acquisition, full tomographic inversion, and a factual report with velocity sections in DXF and PDF. Mobilisation within the SN postcode area is included; complex traffic management on the A419 or railway-proximity permits would be quoted separately.

What depth can seismic tomography reach in the chalk around Swindon?

Refraction tomography with a 115-metre spread reliably images down to 20–25 metres in dry chalk, though the depth of investigation shrinks if a high-velocity caprock like the Chalk Rock is present near the surface. Reflection surveys, where we use a tighter geophone spacing and a higher-frequency source, can map structure beyond 50 metres, which is useful for tracing the sub-Palaeogene unconformity or locating major dissolution features beneath the Clay-with-Flints cover on the Swindon plateau.

How do you tell the difference between a solution feature and a buried channel in the tomography?

A solution pipe in the chalk typically appears as a narrow, vertically elongated low-velocity anomaly that cuts across the sub-horizontal velocity layering. A buried channel filled with soft alluvium tends to be broader, with a concave base and internal velocity grading from 400–800 m/s at the top to 1,200 m/s near the base. We cross-check the shape against the site's Quaternary mapping: the River Ray terrace gravels east of Swindon have a distinctive signature that does not match the chaotic velocity pattern of a chalk doline.

Is the method affected by the heavy clay cover on some Swindon sites?

The Clay-with-Flints and the residual Kimmeridge Clay that cap the chalk in parts of Swindon do attenuate high frequencies, but they also improve geophone coupling compared to loose granular soils. We compensate by increasing the source energy—switching from a sledgehammer to a weight drop or buffalo gun—and by stacking more shots per station. The resulting velocity contrast between the weathered clay (typically 400–900 m/s) and the underlying chalk (1,200–2,500 m/s) actually produces a strong refraction horizon that is easy to pick in the first-break data.
